Fortify Your Terraform - Scanning IaC with Trivy and GitLeaks on GitHub Actions

Introduction: Securing Your Infrastructure from the Start

In today’s fast-paced development landscape, security cannot be an afterthought. Ensuring the integrity of your Infrastructure as Code (IaC) is paramount, especially when working with tools like Terraform. Enter Trivy¹, a powerful open-source security scanner designed to detect vulnerabilities across various targets, and GitLeaks², an open-source scanner optimized to identify secrets.

n this post, you’ll learn how to use Trivy in GitHub Actions to scan your Terraform code for vulnerabilities before deploying. While working on this, I found Trivy’s secret detection had some gaps, so I added GitLeaks to the mix

Prerequisites: Setting the Stage

For this tutorial, you’ll need a GitHub repository. I’ll build upon the setup from my previous blog post, which detailed OIDC and Entra ID authentication for Azure deployments from GitHub Actions. You can find the details here.

TThe files used in this post are available in my blog-data repository:

• Terraform Code
• GitHub Actions Workflows

GitHub Actions Workflow: Building the Foundation

First, create a new GitHub Actions workflow. If needed, create the .github/workflows directory and add the following YAML file.

Enhanced from my earlier blog post, this workflow integrates a basic Trivy scan, which I’ll explain in the following section.

name: "terraform-trivy-basic-scan"

on:
  push:
    branches:
      - main

permissions:
  contents: read
  id-token: write

jobs:
  terraform:
    name: "Terraform"
    runs-on: ubuntu-latest
    defaults:
      run:
        shell: bash
        working-directory: $
    env:
      TERRAFORM_DIR: trivy-scan
      TERRAFORM_LOG: "WARN"
      ARM_CLIENT_ID: $
      ARM_SUBSCRIPTION_ID: $
      ARM_TENANT_ID: $
      BACKEND_RESOURCE_GROUP: $
      BACKEND_STORAGE_ACCOUNT: $
      BACKEND_CONTAINER_NAME: $
      BACKEND_KEY: $

    steps:
      - name: "Code Checkout"
        uses: actions/checkout@v4

      - name: Run Trivy IaC scan
        uses: aquasecurity/trivy-action@master
        with:
          scan-type: 'fs'
          scan-ref: $
          scanners: secret,misconfig
          format: 'table'
          exit-code: '1'
          severity: 'CRITICAL,HIGH'
          skip-dirs: '.terraform'
          trivyignores: $/.trivyignore

      - name: "Install Terraform"
        uses: hashicorp/setup-terraform@v3

      - name: "Terraform Version"
        id: version
        run: terraform --version

      - name: "Terraform Init"
        id: init
        run: |
          terraform init \
            -backend-config="resource_group_name=$BACKEND_RESOURCE_GROUP" \
            -backend-config="storage_account_name=$BACKEND_STORAGE_ACCOUNT" \
            -backend-config="container_name=$BACKEND_CONTAINER_NAME" \
            -backend-config="key=$BACKEND_KEY" \
      - name: "Terraform Plan"
        id: plan
        run: |
          terraform plan -out=tfplan
      - name: "Upload Terraform Plan to Working Directory"
        uses: actions/upload-artifact@v4
        with:
          name: terraformPlan
          path: "tfplan"

      - name: "Terraform Apply using Plan File"
        id: apply
        run: terraform apply tfplan

Integrate Trivy Scan into the Workflow

We’ll integrate Trivy using the aquasecurity/trivy-action. This step is added immediately after the “Code Checkout” to scan the Terraform code before execution.

Let’s explore Trivy’s versatile options for scanning IaC configurations. I highly recommend experimenting locally to tailor the settings to your specific needs. Trivy offers flexibility, allowing you to define options directly in your pipeline or via a YAML file within your repository. For comprehensive details, consult the Trivy IaC documentation³ and the Trivy action documentation⁴

• scan-type: Specifies the scan type (fs for filesystem scans).
• scan-ref: Sets the desired Terraform directory - without this Trivy will scan the whole repository.
• scanners: Defines the types of security issues to detect (IaC supports misconfiguration and secrets).
• format: Specifies the output format.
• exit-code: Fails the workflow if vulnerabilities are found.
• severity: Sets the severity level to check.
• skip-dirs: Excludes specified directories.
• trivyignores: Specifies a .trivyignore file to ignore specific issues by adding the ID (See section Ignoring Specific Issues).

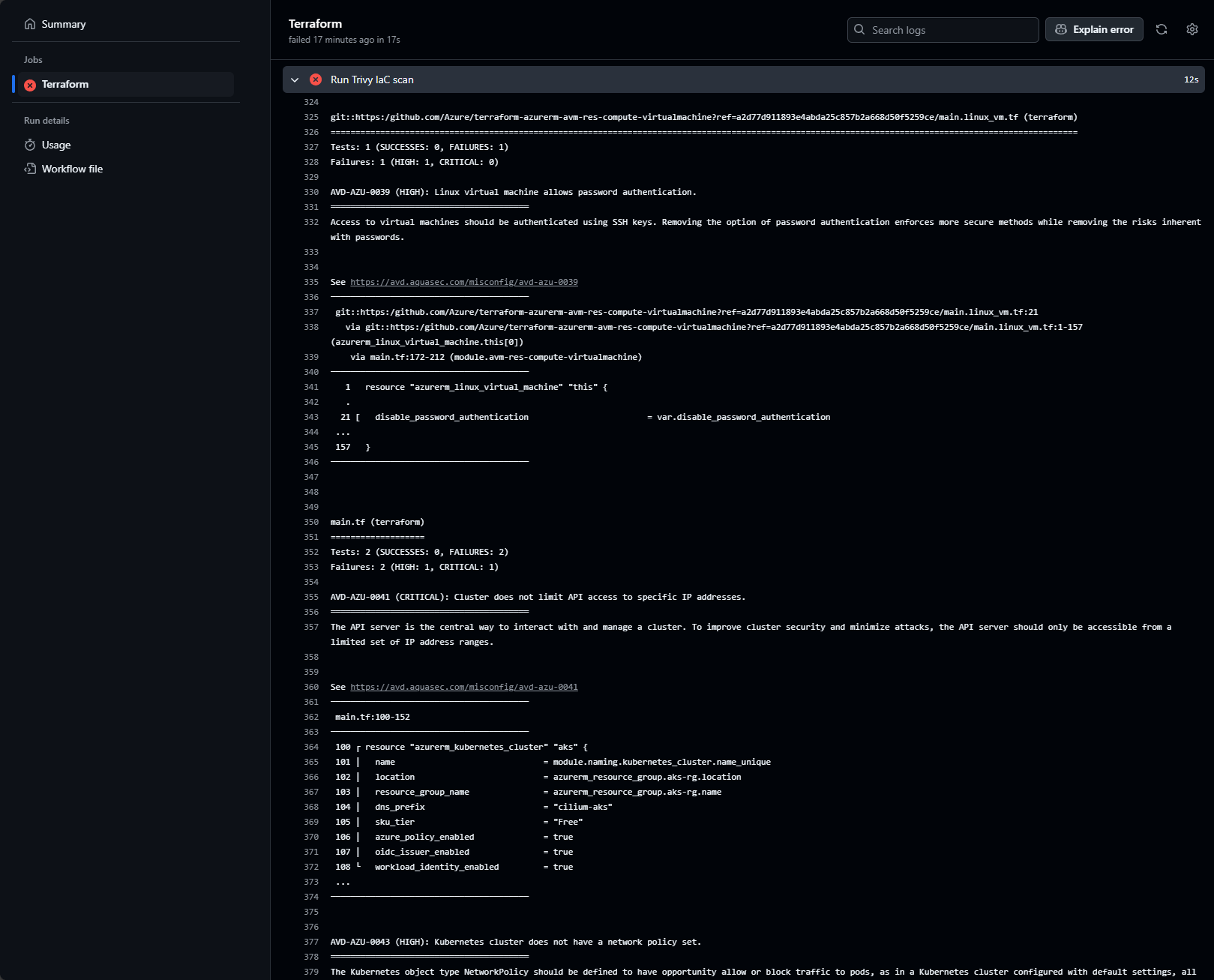

Let’s review the step’s output to understand the results, which are displayed as follows:

While Trivy detected issues within our code, the output lacks readability.

To improve this, we’ll modify the configuration to publish the scan results to the GitHub Actions summary page, providing a better overview of all security vulnerabilities.

Additionally, we’ll configure a second Trivy scan to fail only if any High or Critical issues are detected.

      - name: Run Initial Trivy IaC scan
        uses: aquasecurity/trivy-action@master
        with:
          scan-type: 'fs'
          scan-ref: $
          scanners: secret,misconfig
          format: 'table'
          skip-dirs: '.terraform'
          trivyignores: $/.trivyignore
          hide-progress: true
          output: $GITHUB_WORKSPACE/trivy.txt

      - name: Publish Trivy Output to Summary
        run: |
          if [[ -s $GITHUB_WORKSPACE/trivy.txt ]]; then
            {
              echo "### Security Output"
              echo "<details><summary>Click to expand</summary>"
              echo ""
              echo '```terraform'
              cat $GITHUB_WORKSPACE/trivy.txt
              echo '```'
              echo "</details>"
            } >> $GITHUB_STEP_SUMMARY
          fi

      - name: Run High, Critical Trivy IaC scan
        uses: aquasecurity/trivy-action@master
        with:
          scan-type: 'fs'
          scan-ref: $
          scanners: secret,misconfig
          hide-progress: true
          severity: 'CRITICAL,HIGH'
          exit-code: '1'
          skip-dirs: '.terraform'
          trivyignores: $/.trivyignore
          skip-setup-trivy: true

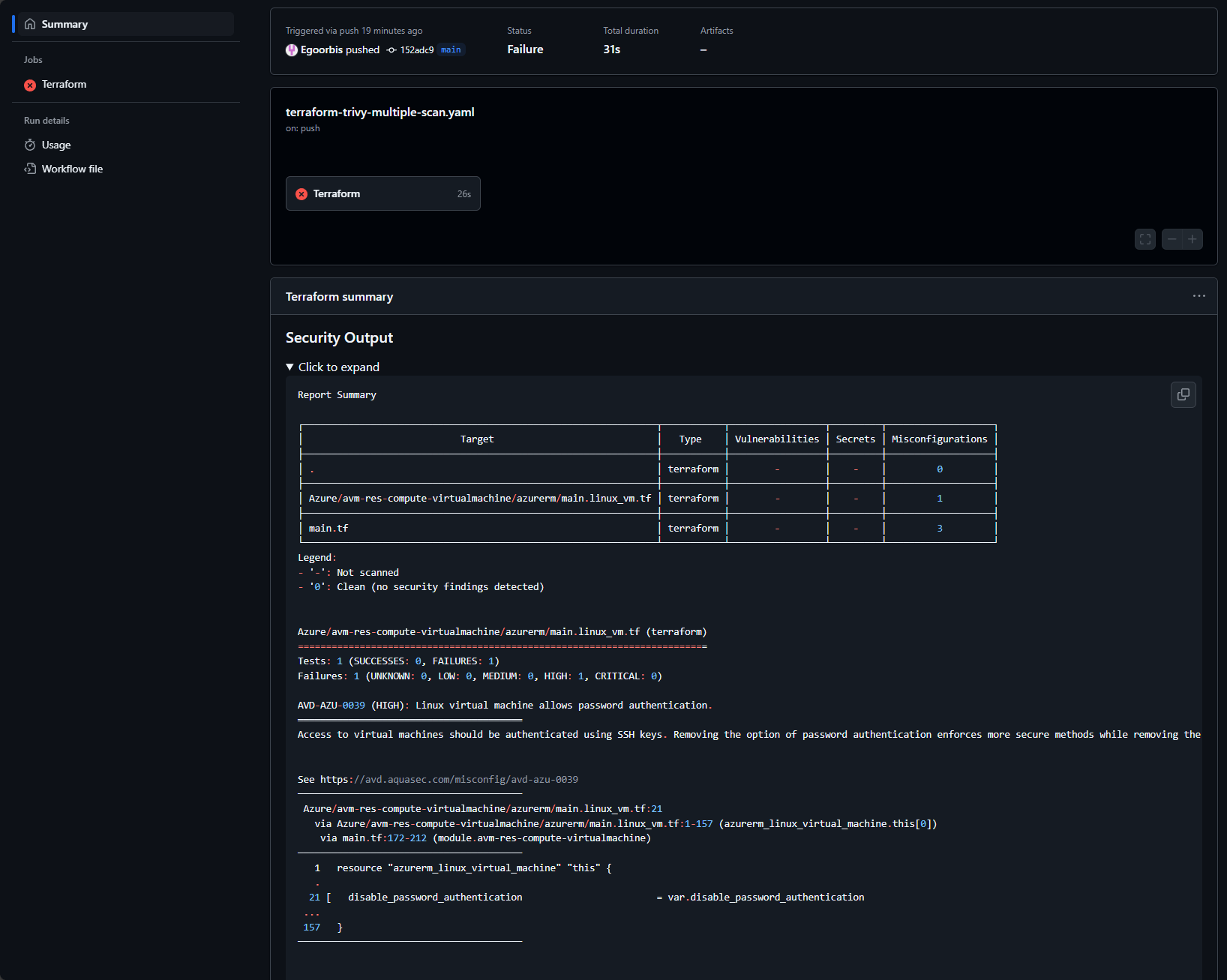

The output of this configuration is presented below:

Ignoring Specific Issues

In the code above we’ve already incorporated trivyignores: $/.trivyignore into our Trivy action, enabling us to selectively exclude identified security issues. This is particularly useful for managing known or acceptable risks in your IaC.

For example, as I lack a fixed public IP address, I’ve chosen to exclude the “AVD-AZU-0041 (CRITICAL): Cluster does not limit API access to specific IP addresses” vulnerability. To achieve this, I simply add the ID AVD-AZU-0041 to the .trivyignore file, placing each ignored vulnerability on a new line. Subsequent Trivy scans will then bypass these specified issues.

Enhancing Secret Detection with GitLeaks

During initial Trivy scans, I observed that it failed to detect an intentionally embedded password within the main.tf file.

This aligns with findings reported in a blog post by Rooneycloudtech⁵, which highlighted the same limitation.

Following the authors recommendation I’ve integrated GitLeaks my workflow to enhance secret detection, complementing Trivy. Using the official GitLeaks action, the following configuration was used:

 - name: Run Gitleaks
        uses: gitleaks/gitleaks-action@v2
        env:
          GITHUB_TOKEN: $

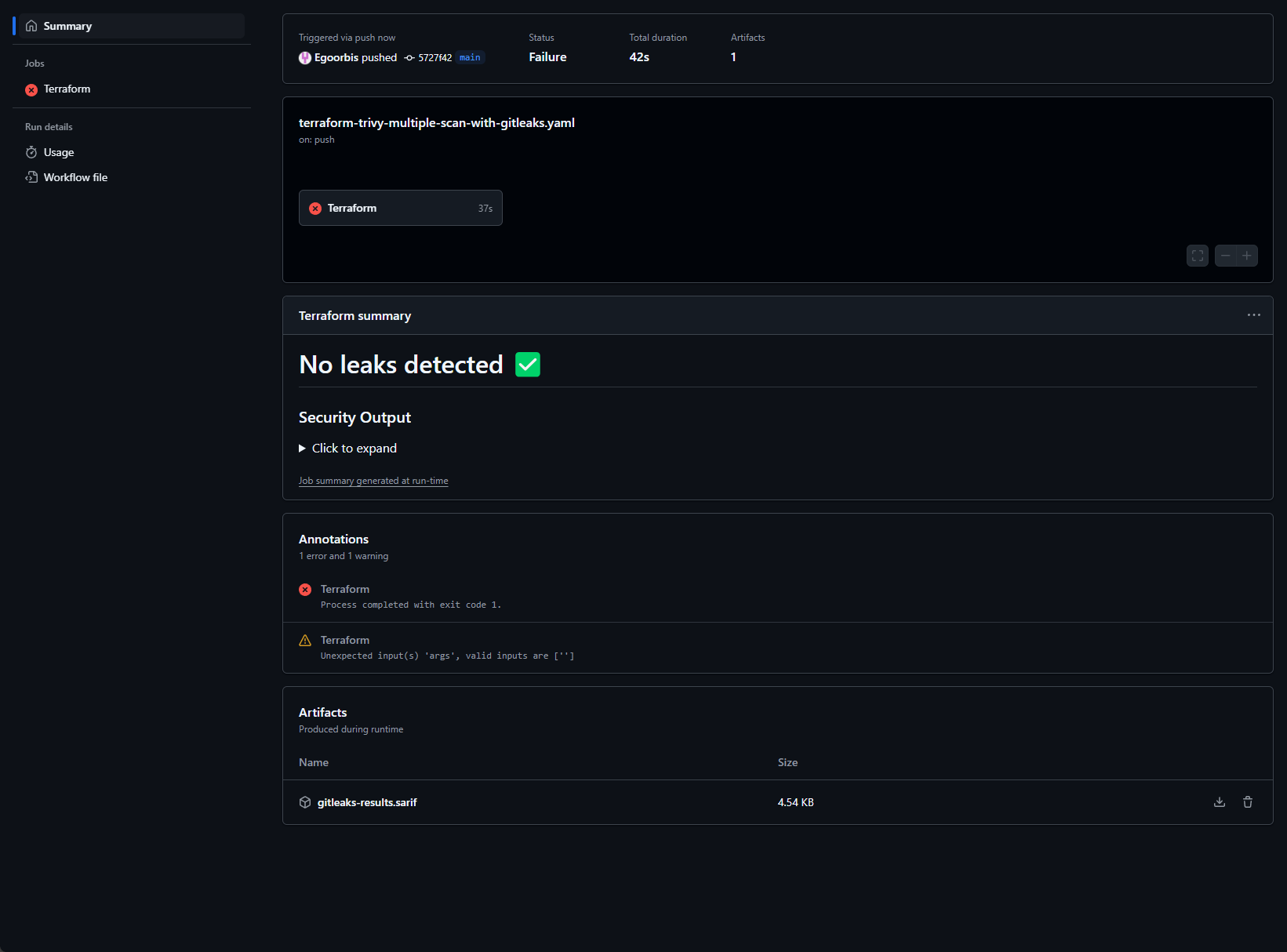

Surprisingly, the official GitLeaks GitHub Action failed to detect the secrets, reporting no issues, despite local testing successfully detecting the password.

To resolve this discrepancy, I’ve modified the workflow to manually install GitLeaks, as shown in the following configuration.

      - name: Install Gitleaks
        run: |
          wget https://github.com/zricethezav/gitleaks/releases/download/v8.18.1/gitleaks_8.18.1_linux_x64.tar.gz
          tar -xzf gitleaks_8.18.1_linux_x64.tar.gz
          sudo mv gitleaks /usr/local/bin/
      - name: Run Gitleaks
        id: gitleaks
        run: |
          # Run gitleaks and strip ANSI escape codes
          gitleaks detect --source . -v --no-banner --no-color > gitleaks_output.txt
        continue-on-error: true

      - name: Add Gitleaks results to summary
        if: always()
        run: |
          echo "## Gitleaks Scan Results" >> $GITHUB_STEP_SUMMARY
          if [[ "$" == "failure" ]]; then
            echo "⚠️ Gitleaks found potential secrets in your code." >> $GITHUB_STEP_SUMMARY
            echo "### Detected Leaks:" >> $GITHUB_STEP_SUMMARY
            echo '```' >> $GITHUB_STEP_SUMMARY
            # Format and clean the output
            grep -v "^[[:space:]]*$" gitleaks_output.txt | \
            grep -v "^    ○" | \
            grep -v "^    │" | \
            grep -v "^    ░" | \
            grep -v "gitleaks$" >> $GITHUB_STEP_SUMMARY
            echo '```' >> $GITHUB_STEP_SUMMARY
          else
            echo "✅ No leaks detected by Gitleaks." >> $GITHUB_STEP_SUMMARY
          fi

As shown in the screenshot below, this time the password was successfully detected.

Through the implementation of Trivy and GitLeaks in a GitHub Actions workflow, we have now established robust security our Terraform deployment, encompassing both misconfiguration and secret detection.

Sources

1. Trivy GitHub Repository

2. GitLeaks

3. Trivy Infrastructure as Code

4. Trivy Action

5. Rooneycloudtech - Trivy vs Gitleaks: Optimizing Repository Security in Modern DevOps.
